Sản phẩm | Bo mạch chủ |
Tên Hãng | Asus |

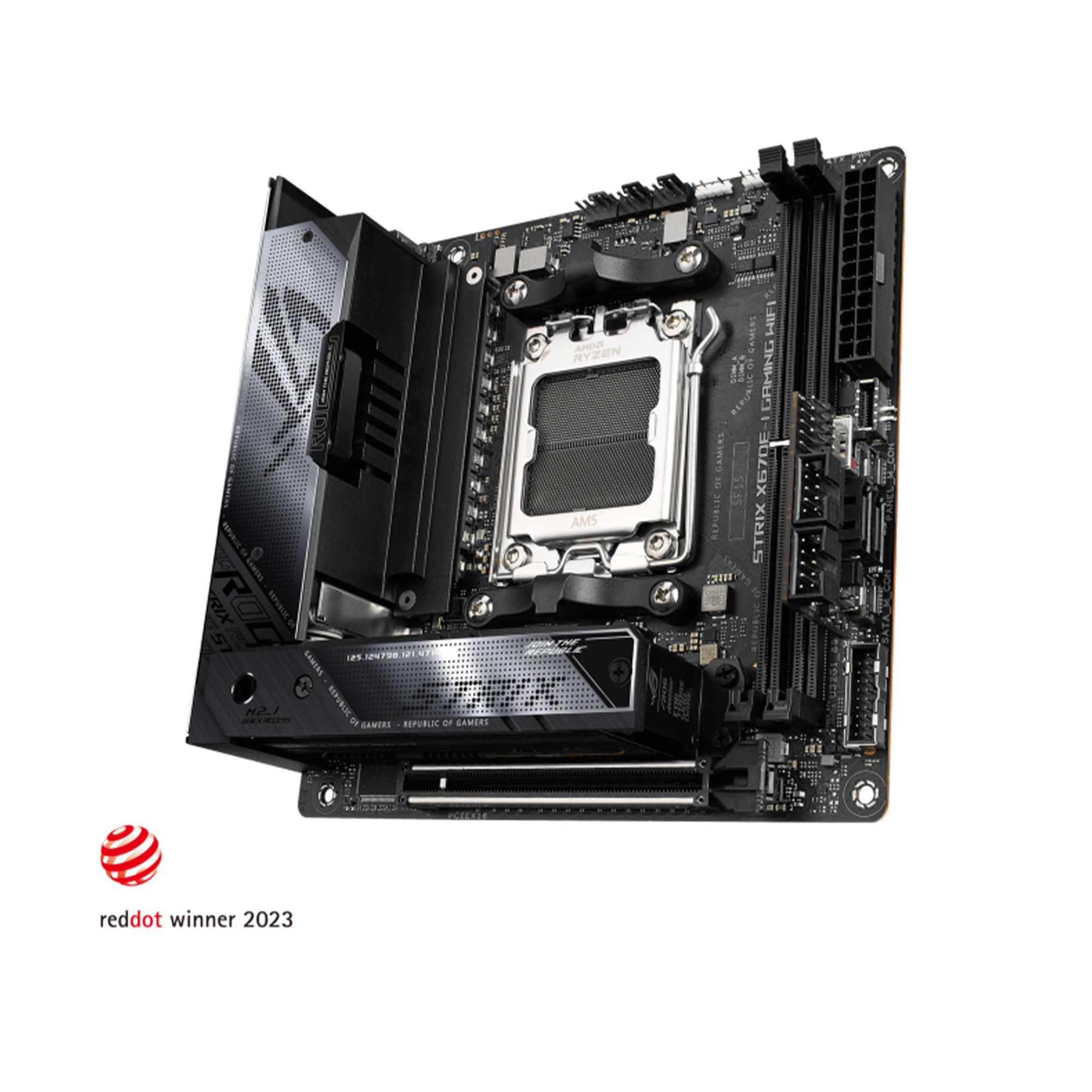

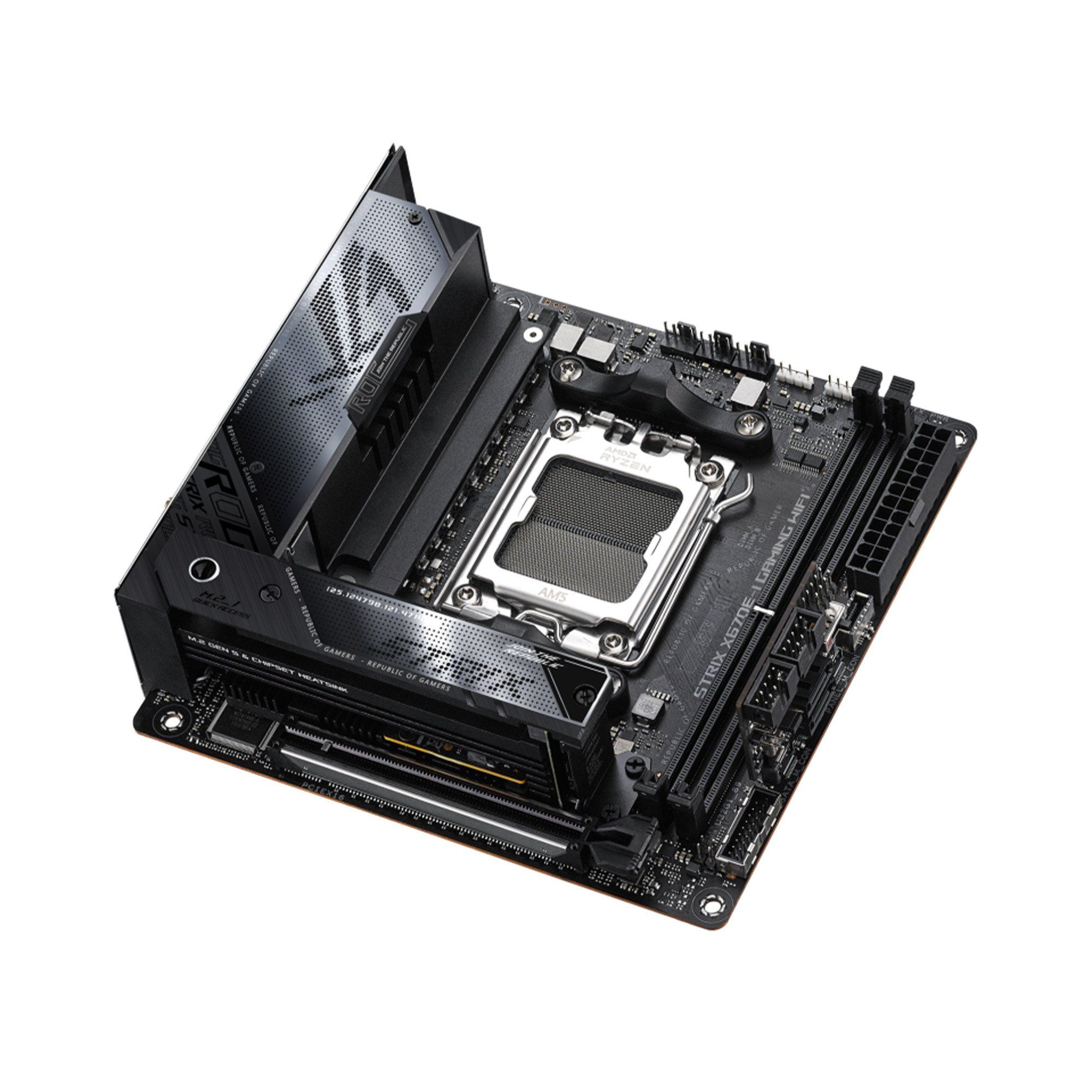

Model | ROG STRIX X670E-I GAMING WIFI |
Chipset | AMD X670 |
CPU hỗ trợ | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
Bộ nhớ | 2 x DIMM, Max. 96GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II |
Đồ họa | 1 x HDMI® port*
2 x USB4® ports support USB Type-C® display
outputs**
*Supports 4K@60Hz as specified in HDMI
2.1.
** VGA resolution support depends on
processors' or graphic cards' resolution. |
Khe cắm mở rộng | AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot(s) |
Lưu trữ | Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports****
*AMD RAIDXpert2 Technology supports both
NVMe RAID 0/1 and SATA RAID 0/1.
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports |
Ethernet | 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard |
Không dây & Bluetooth | Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between
countries, and function will be ready in Windows 11 or later. |
USB | Rear USB (Total 10 ports)
2 x USB4® port(s) with Intel® JHL8540 USB4®
controller (2 x USB Type-C®)
5 x USB 3.2 Gen 2 port(s) (5 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 3 ports)
1 xUSB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s)
additional 2 USB 3.2 Gen 1 ports
ROG STRIX HIVE (Total 2 ports)
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A)
ROG FPS-II C (Total 3 ports)
2 x USB 2.0 header(s) additional 3 USB 2.0
ports** |
Âm Thanh | ROG High Definition Audio CODEC ALC4050
- Supports: Jack-detection
- High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- ROG Hyper-Grounding Technology
- ESS® SABRE9260Q DAC
- Silver-plated audio jacks
- Optical S/PDIF out port & USB Type-C® port with indepent power solution
- Dedicated audio PCB layers
*All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE |

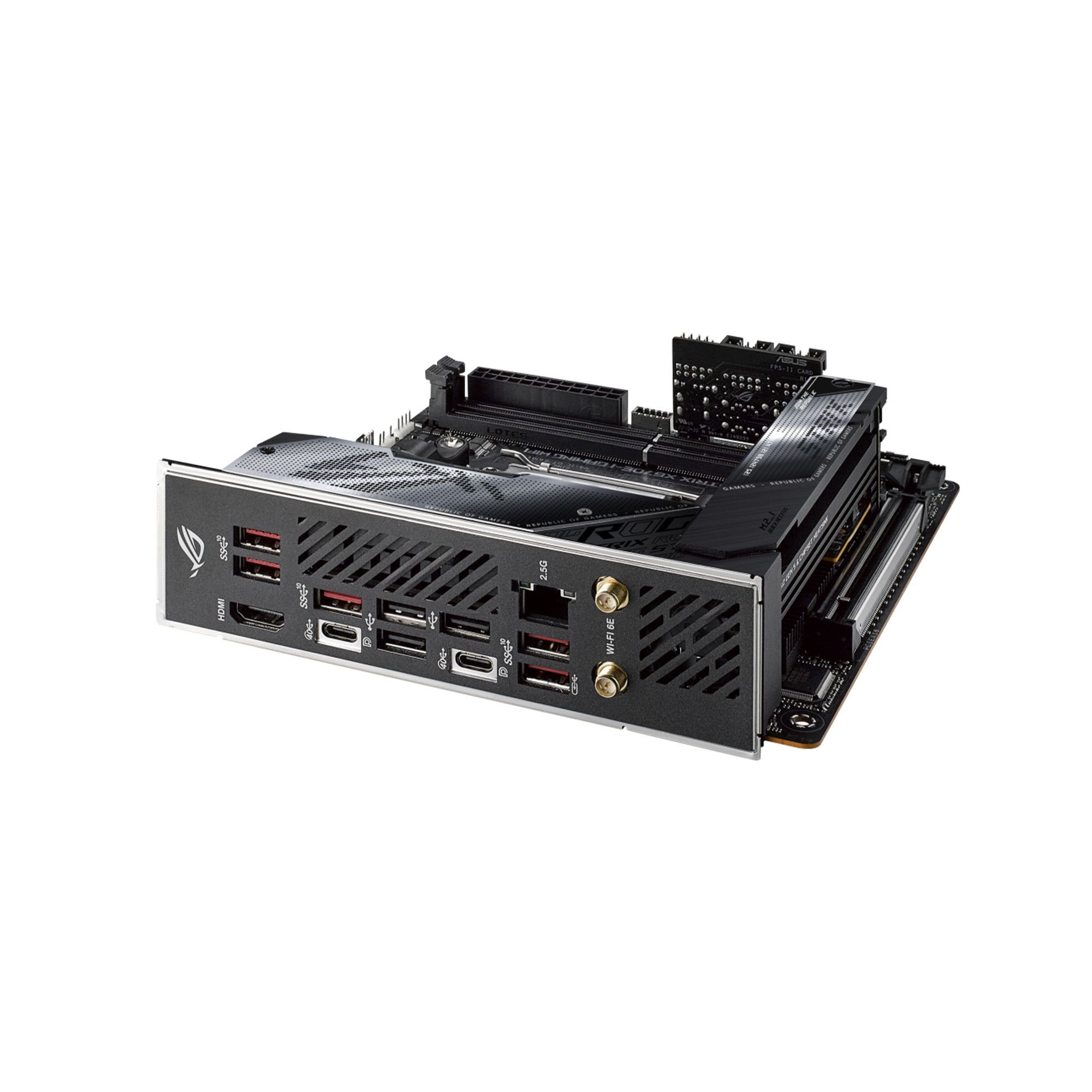

Cổng I/O sau | 2 x USB4® port(s) with Intel® JHL8540 USB4®
controller (2 x USB Type-C®)
5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1
port supports ROG STRIX HIVE)
3 x USB 2.0 port(s) (3 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port |
Đầu nói I/O nội bộ | Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2 connector (support(s) USB
Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s)
additional 2 USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x RTC Battery header
1 x Thermal Sensor header
1 x 2 pin Power_BTN header
2 x USB Type-C® connectors to Install ROG
FPS-II card*
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Clear CMOS header
1 x Front Panel header
1 x Alteration mode switch
2 x USB 2.0 header(s) support(s) additional
3 USB 2.0 ports |
Special Features | Extreme Engine Digi+
-5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- Aluminum backplate
- M.2 Chipset Fan
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
ROG STRIX HIVE
1 x USB Type-C® connects to Motherboard
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A with BIOS
FlashBack™)
1 x Headphone jack with Mic in
1 x Mic in jack with Optical S/PDIF out
1 x EZ mode PBO button
1 x FlexKey button
1 x BIOS FlashBack™ button
1 x Volume Control Knob with Mute Button
Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green]) |
Tính năng phần mềm | ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Accessories | Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C® power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x User guide |
Hệ điều hành | Windows® 11, Windows® 10 64-bit |
Dạng | Mini-ITX Form Factor
6.7 inch x 6.7 inch( 17cm x 17cm) |
