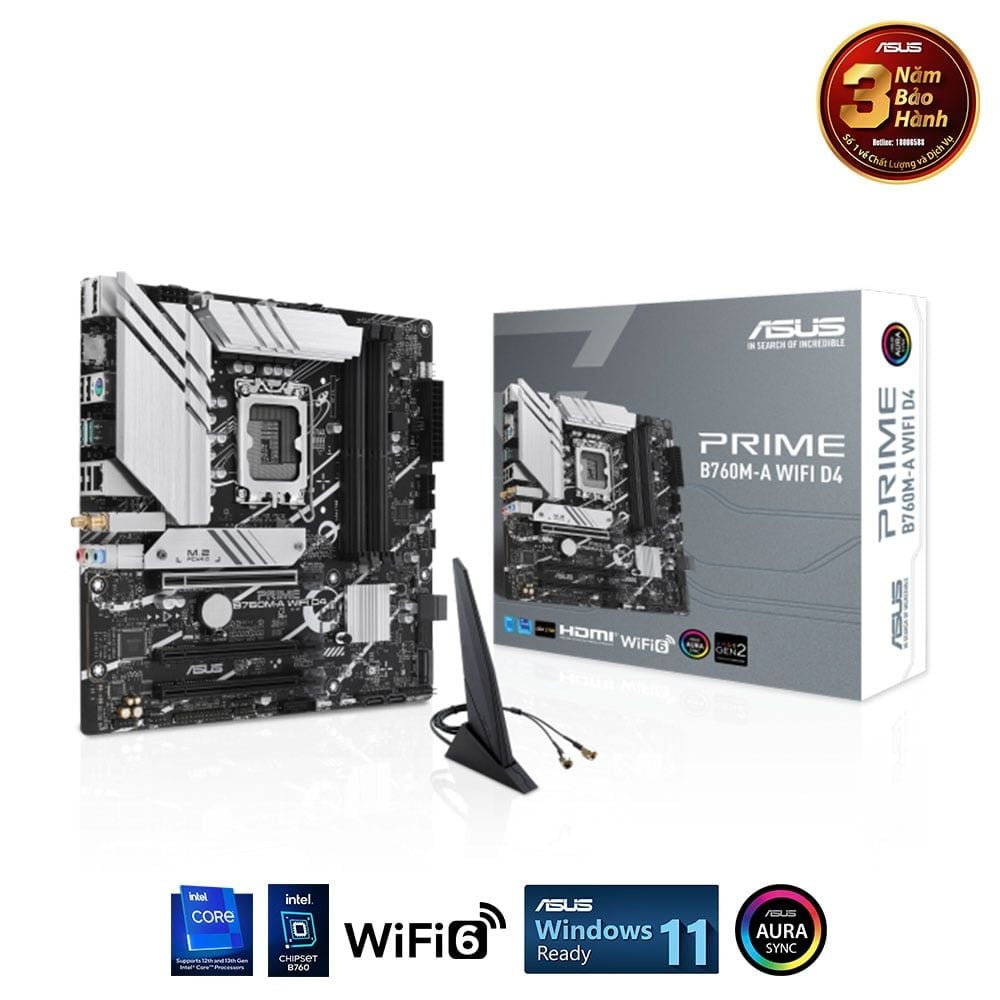

Mainboard ASUS PRIME B760M-A WIFI D4

Thương hiệu: Asus
Loại sản phẩm: Mainboard
Nhóm sản phẩm: Mainboard B760, Mainboard, Linh Kiện PC
3,450,000₫ 3,990,000₫ (-14%)
Bảo hành 36 tháng
Tiêu đề
ItemSidebar
Đảm bảo đúng hẹn

Hoàn lại tiền trong 30 ngày

ItemSidebar
Miễn phí vận chuyển

Cho đơn hàng trên 3.000.000đ trong bán kính 5km

ItemSidebar
Hỗ trợ trực tuyến

Chúng tôi hỗ trợ 24/24

ItemSidebar
Thu cũ đổi mới

Chúng tôi sẽ thu linh kiện cũ của bạn và trợ giá, tư vấn cấu hình phù hợp với nhu cầu và nâng cấp cho bạn .

Thông số kỹ thuật chi tiết Mainboard ASUS PRIME B760M-A WIFI D4

Sản phẩmBo mạch chủ
Tên HãngASUS
ModelPRIME B760M-A WIFI D4
CPU hỗ trợHỗ trợ cho thế hệ thứ 12 và 13 Intel® Core Socket LGA1700
ChipsetB760
RAM hỗ trợ4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Khe cắm mở rộng
Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Ổ cứng hỗ trợTotal supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Cổng kết nối (Internal)Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
Cổng kết nối (Back Panel)2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMI® ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
LAN / WirelessWi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Kích cỡmATX Form Factor
