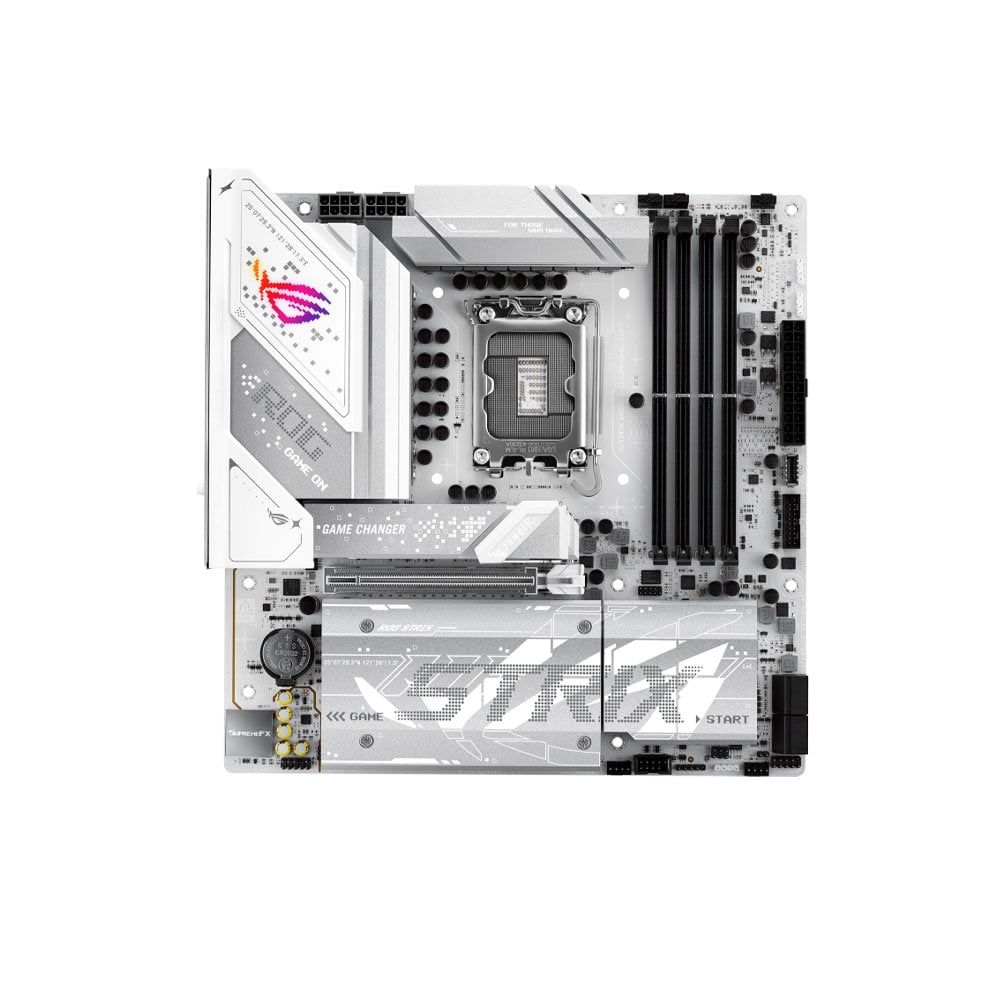

Mainboard Asus ROG STRIX B860-G GAMING WIFI DDR5 (Thunderbolt4+Bluetooth)

Mainboard Asus ROG STRIX B860-G GAMING WIFI DDR5 (Thunderbolt4+Bluetooth)

Thương hiệu: Asus

Loại sản phẩm: Mainboard

Nhóm sản phẩm: Mainboard B860, Mainboard, Linh Kiện PC

7,499,000₫ ~~8,590,000₫~~ (-13%)

Bảo hành 36 tháng

Tiêu đề

B860-G GAMING WIFI DDR5

Thông số kỹ thuật

Đảm bảo đúng hẹn

Hoàn lại tiền trong 30 ngày

Miễn phí vận chuyển

Cho đơn hàng trên 3.000.000đ trong bán kính 5km

Hỗ trợ trực tuyến

Chúng tôi hỗ trợ 24/24

Thu cũ đổi mới

Chúng tôi sẽ thu linh kiện cũ của bạn và trợ giá, tư vấn cấu hình phù hợp với nhu cầu và nâng cấp cho bạn .

Mô tả sản phẩm

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
CPU hỗ trợ	Support Intel Core Ultra Processors (Series 2) Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B860 Chipset
RAM hỗ trợ	4 x DIMM slots, max. 256GB, DDR5 Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMPIII)
Đồ họa	1 x DisplayPort 1 x HDM port 1 x Intel Thunderbolt 4 supports DisplayPort and Thunderbolt video outputs
Khe cắm mở rộng	Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot
Ổ cứng hỗ trợ	Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
ETHERNET	1 x Intel 2.5Gb Ethernet ASUS LANGuard
USB	Rear USB (Total 10 ports) 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 20Gbps ports (1 x USB Type-C) 1 x USB 10Gbps ports (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header supports 3 additional USB 2.0 ports
Cổng kết nối (Internal)	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header supports 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 header(s) 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header
Cổng kết nối (Back Panel)	1 x Thunderbolt 4 USB Type-C port(s) 1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode) 1 x USB 10Gbps port(s) (1 x Type-A) 3 x USB 5Gbps port(s) (3 x Type-A) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
LAN / Wireless	Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
Âm thanh	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover
Kích cỡ	micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
