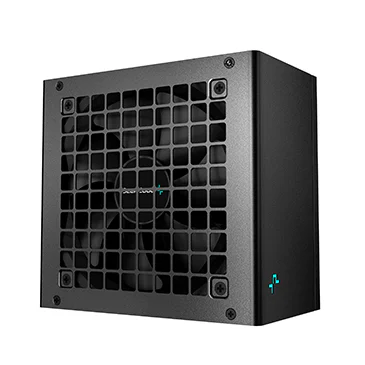

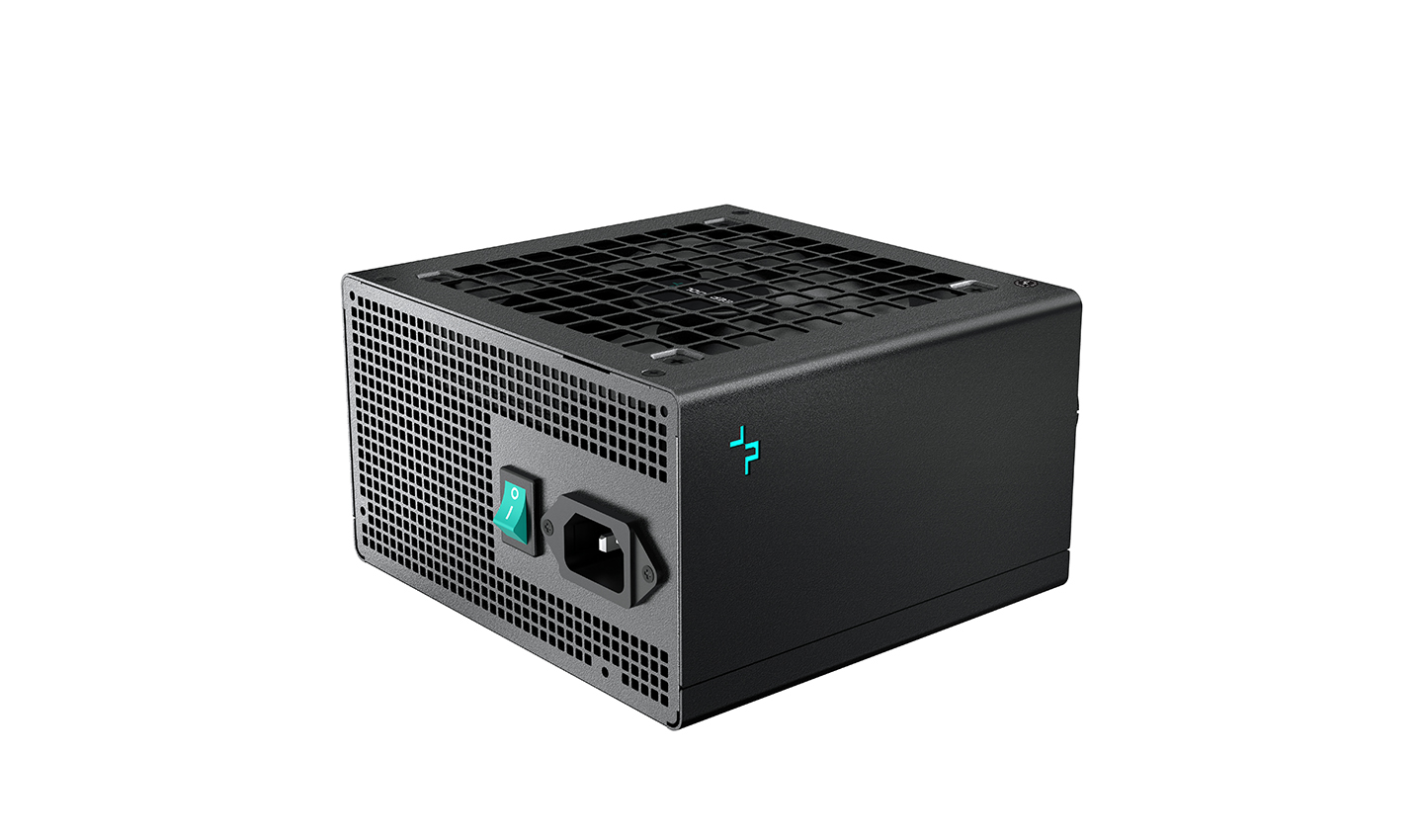

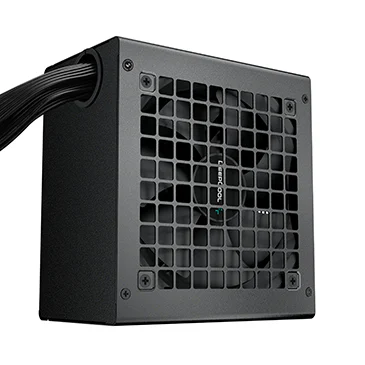

PK650D
80 PLUS Bronze Power Supply
PK650D

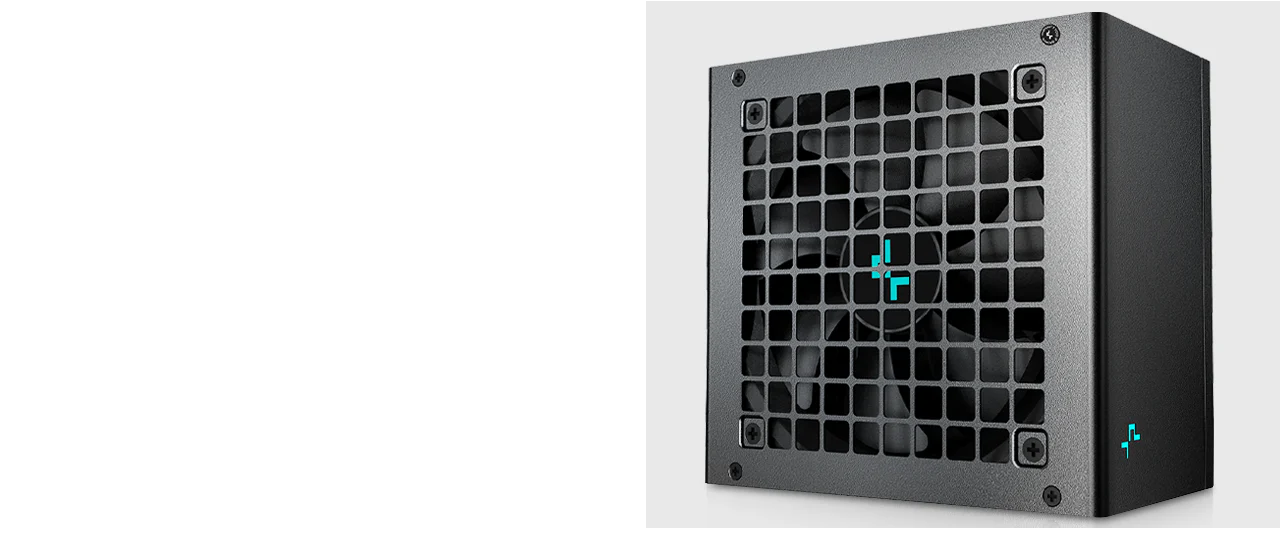

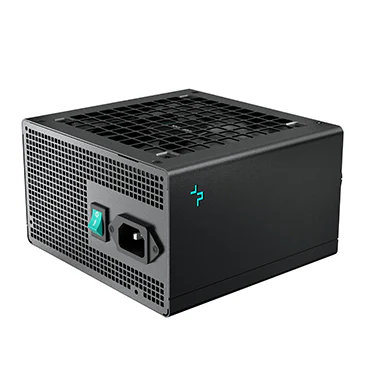

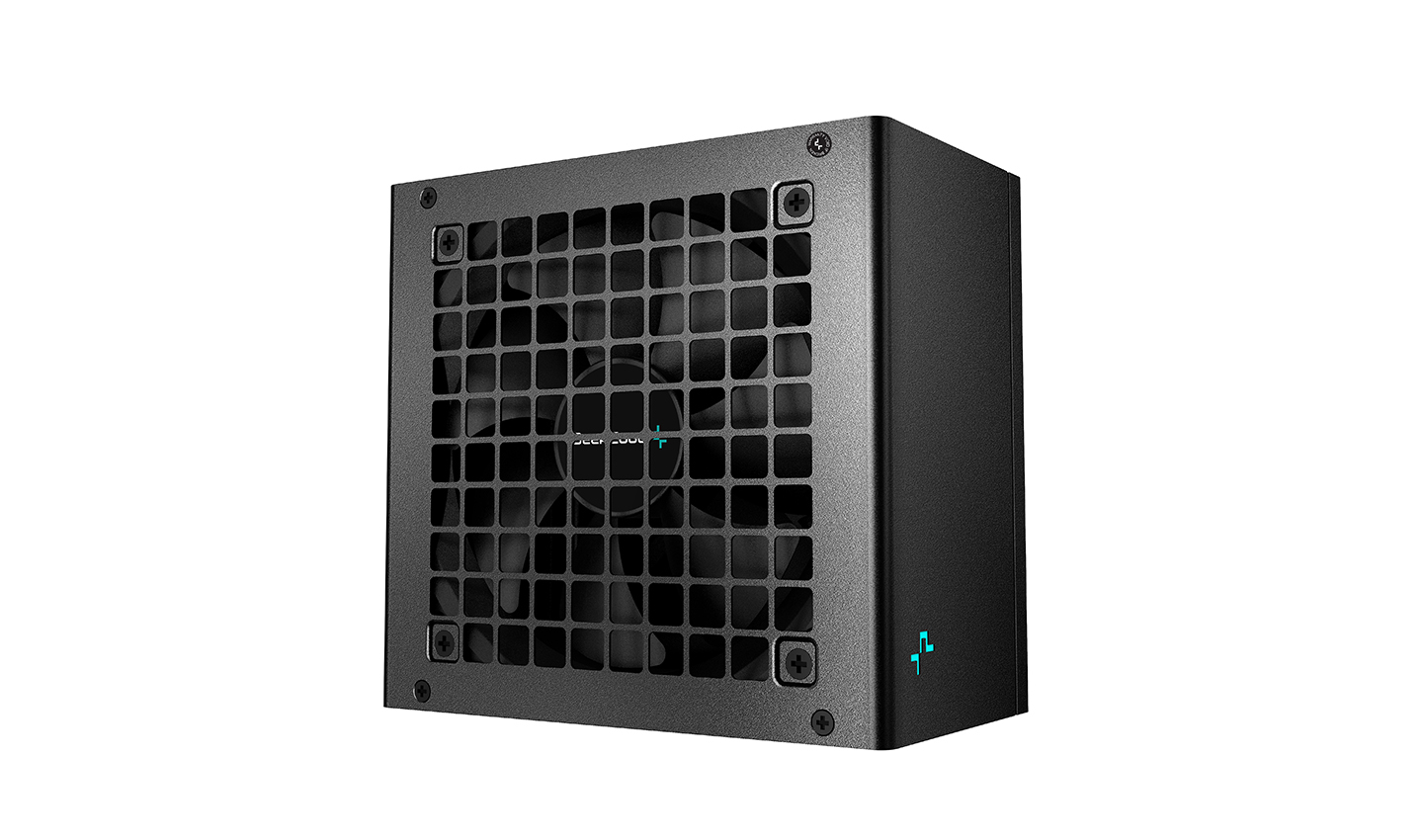

The DeepCool PK-D series power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.
BEAUTIFUL IN BRONZE
The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.
DC-DC CONVERSION

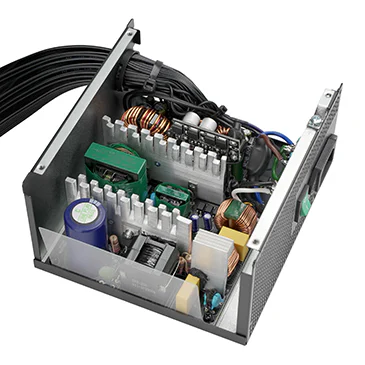

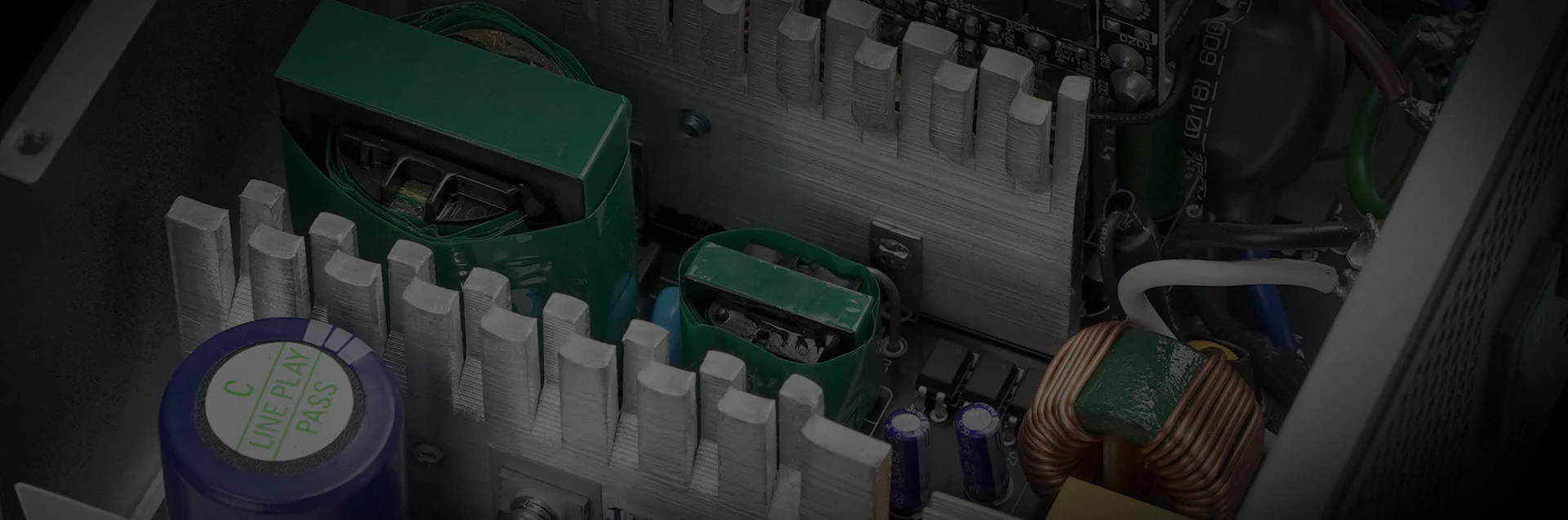

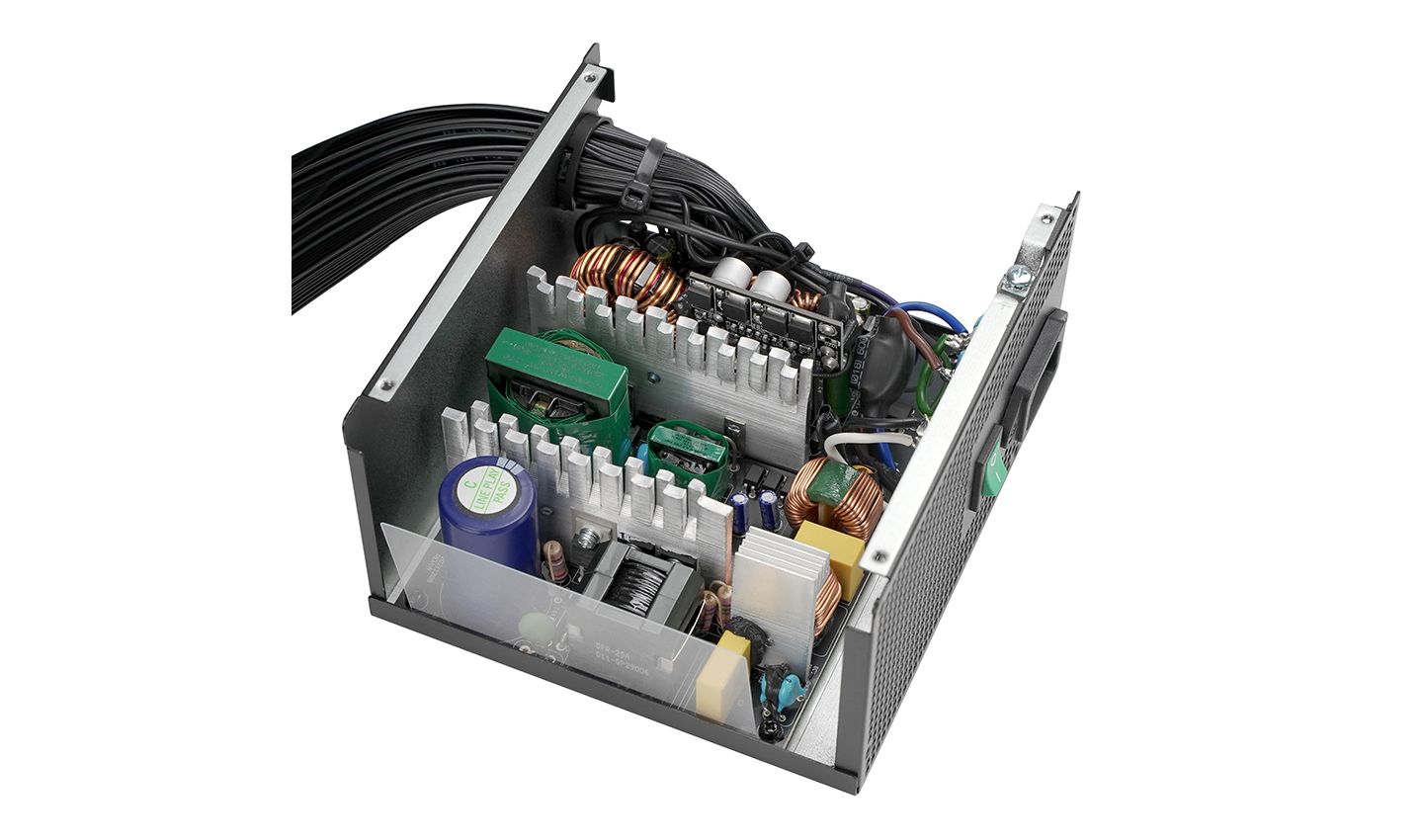

A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.
TOUGH AND DURABLE
Designed to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.
ERP LOT 6 COMPLIANT
Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.

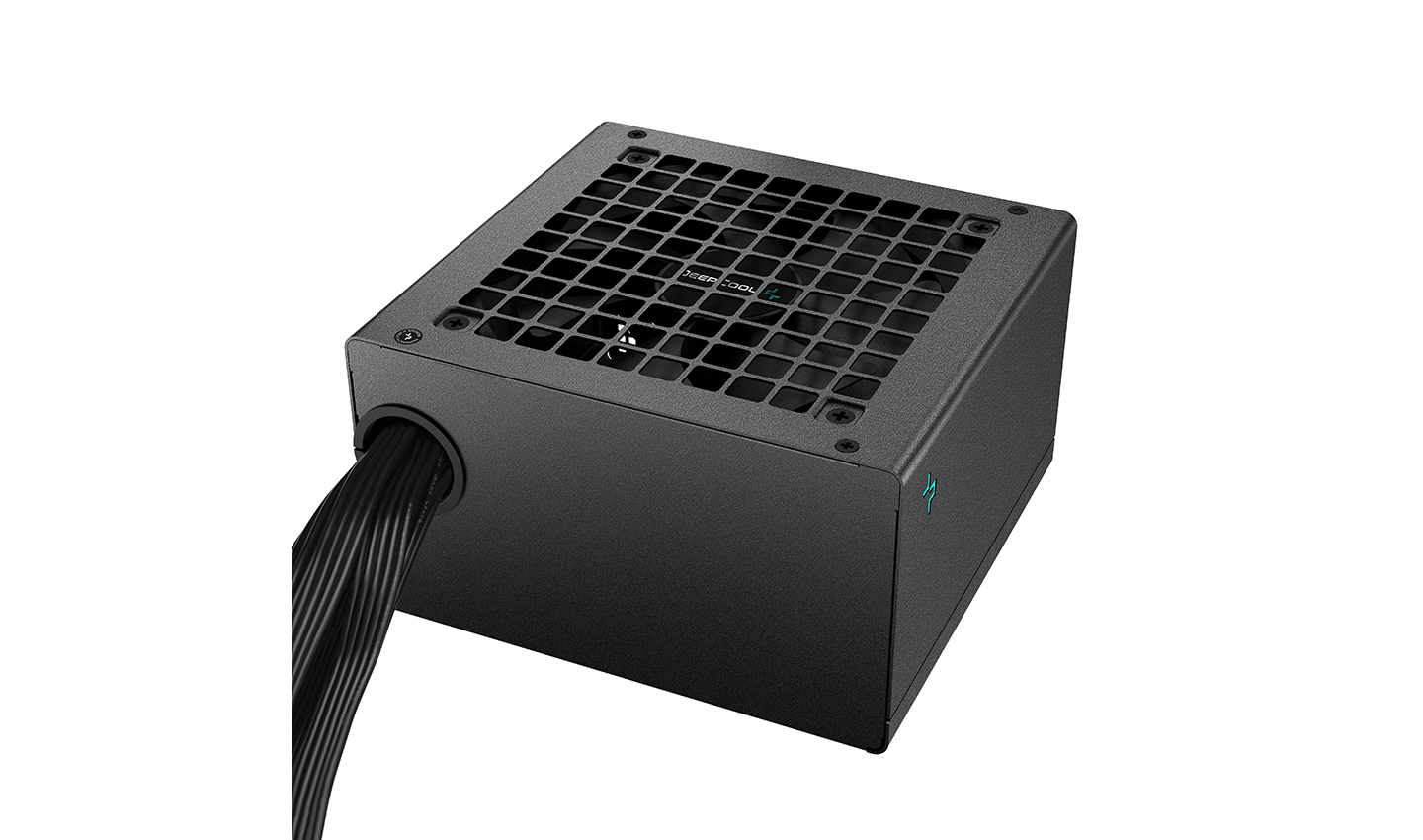

STEALTH BLACK
Black direct power cables help blend in with other components.

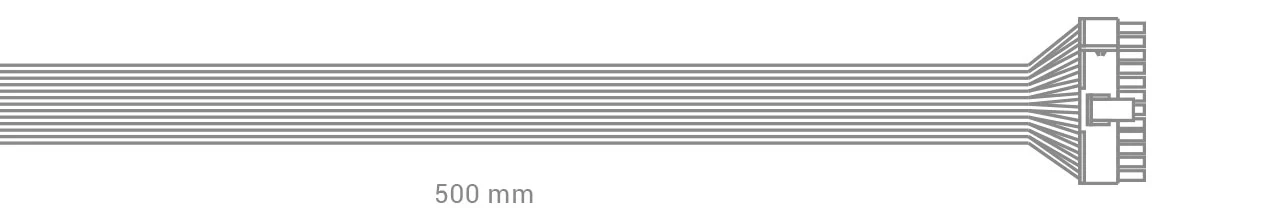

Main Power Connector 24 (20+4)Pin x1
X1

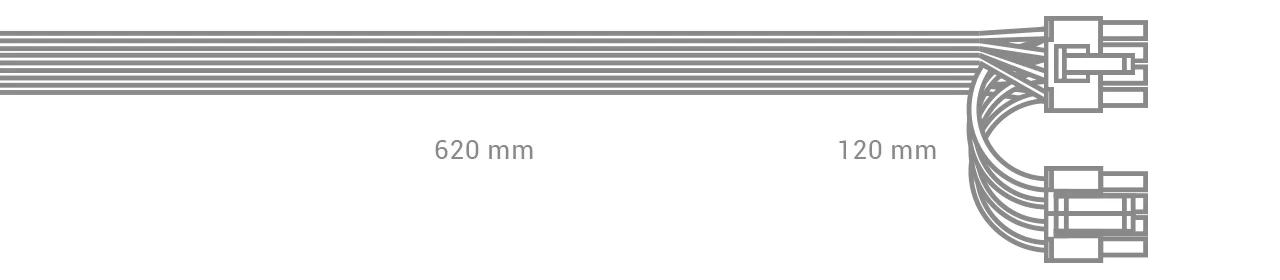

EPS 12V Connector 8 (4+4)Pin x2
X1

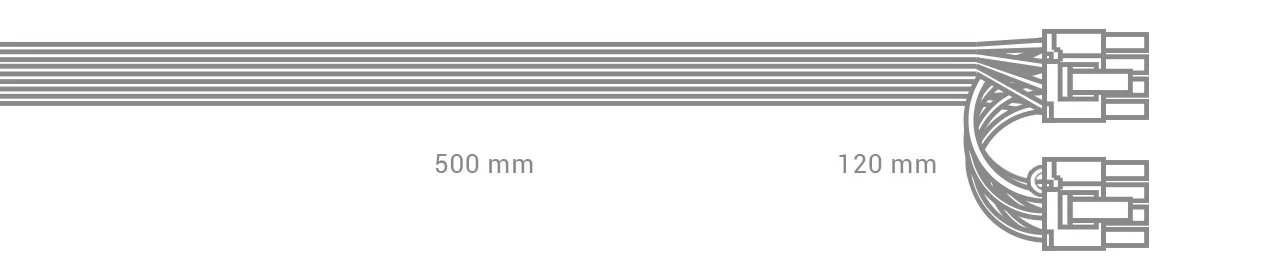

PCI-E (6+2)Pin x2
X2

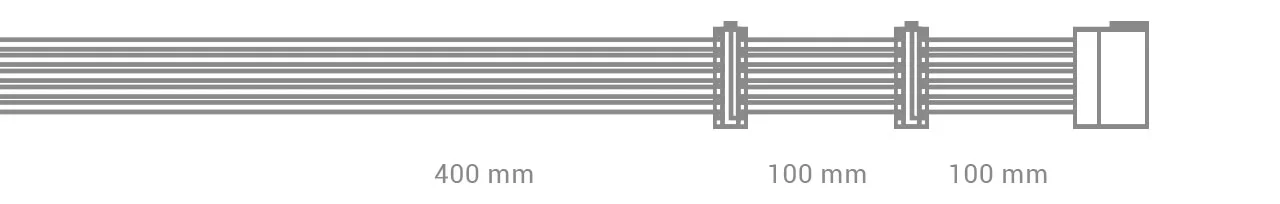

SATA x3
X1
SATA x4
X1

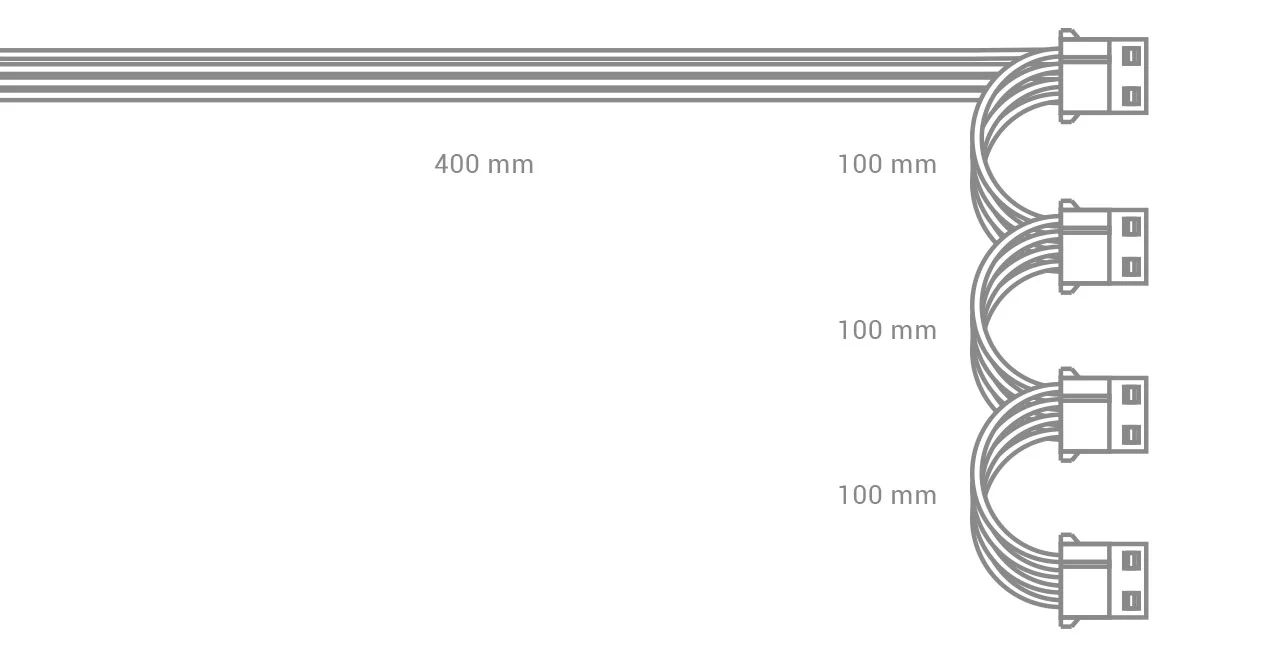

4Pin Peripheral x4
X1
Technical Spec
Type | ATX12V V2.4 |
Product Dimensions | 150×140×86mm (W x L x H) |
80PLUS Certifications | Bronze |

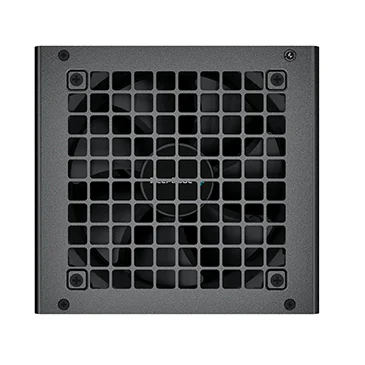

Fan Size | 120mm |
Fan Bearing | Hypro Bearing |
Topology | Active PFC+DC to DC |
Capacitors | Taiwan capacitor |
Power Good Signal | 100-150ms |
Hold Up Time | ≥16ms(80% Load) |
Efficiency | ≥85% Under Typical Load(50% Loading) |
Protection | SCP,OPP,OTP,OVP,OCP,UVP |
Operation Temperature | 0 - 40 °C |

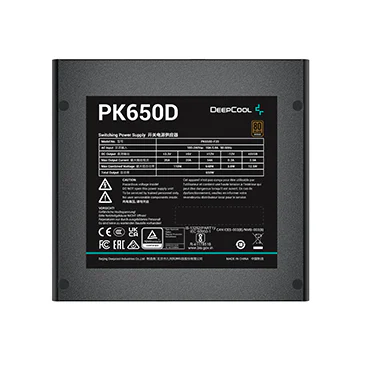

Regulatory | CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS/KC |
Erp Regulation | ErP 2013 |
MTBF | 100,000 Hours |
EAN P/N | 6933412715153 R-PK650D-FA0B-CN 6933412715160 R-PK650D-FA0B-AU 6933412715177 R-PK650D-FA0B-EU 6933412715184 R-PK650D-FA0B-JP 6933412715191 R-PK650D-FA0B-UK 6933412715207 R-PK650D-FA0B-US 6933412715214 R-PK650D-FA0B-AR 6933412715221 R-PK650D-FA0B-BR 6933412715238 R-PK650D-FA0B-WO 6933412715245 R-PK650D-FA0B-BP 6933412715610 R-PK650D-FA0B-BE |
Download
PK650D Manual.pdf
Download
Download
PRODUCT ALBUM
Download
Pictures and content displayed on product pages are provided for reference only. Product features and specifications (including, but not limited to appearance, color, and size), as well as actual displayed content (including, but not limited to background, UI and icons) may vary.
