Nguồn Deepcool PK750D
PK750D
80 PLUS Bronze Power Supply
PK750D

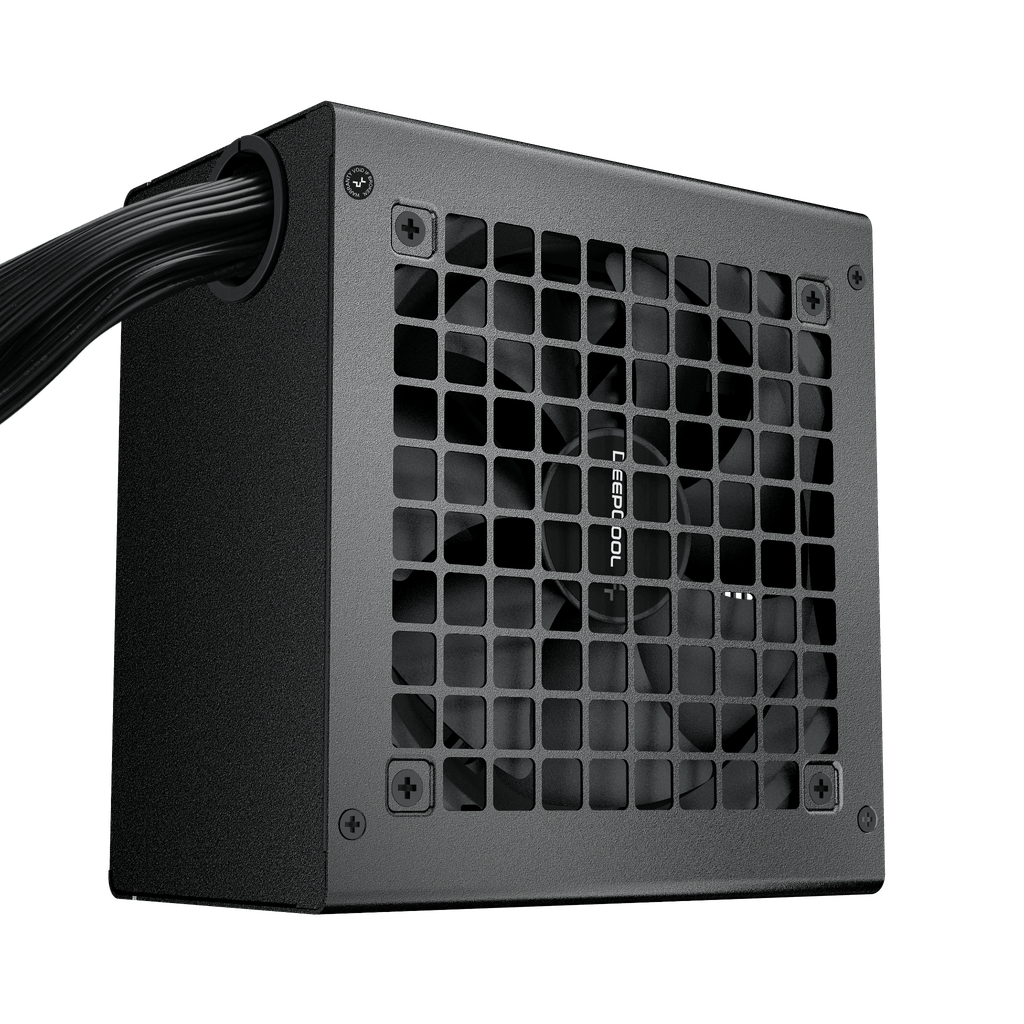

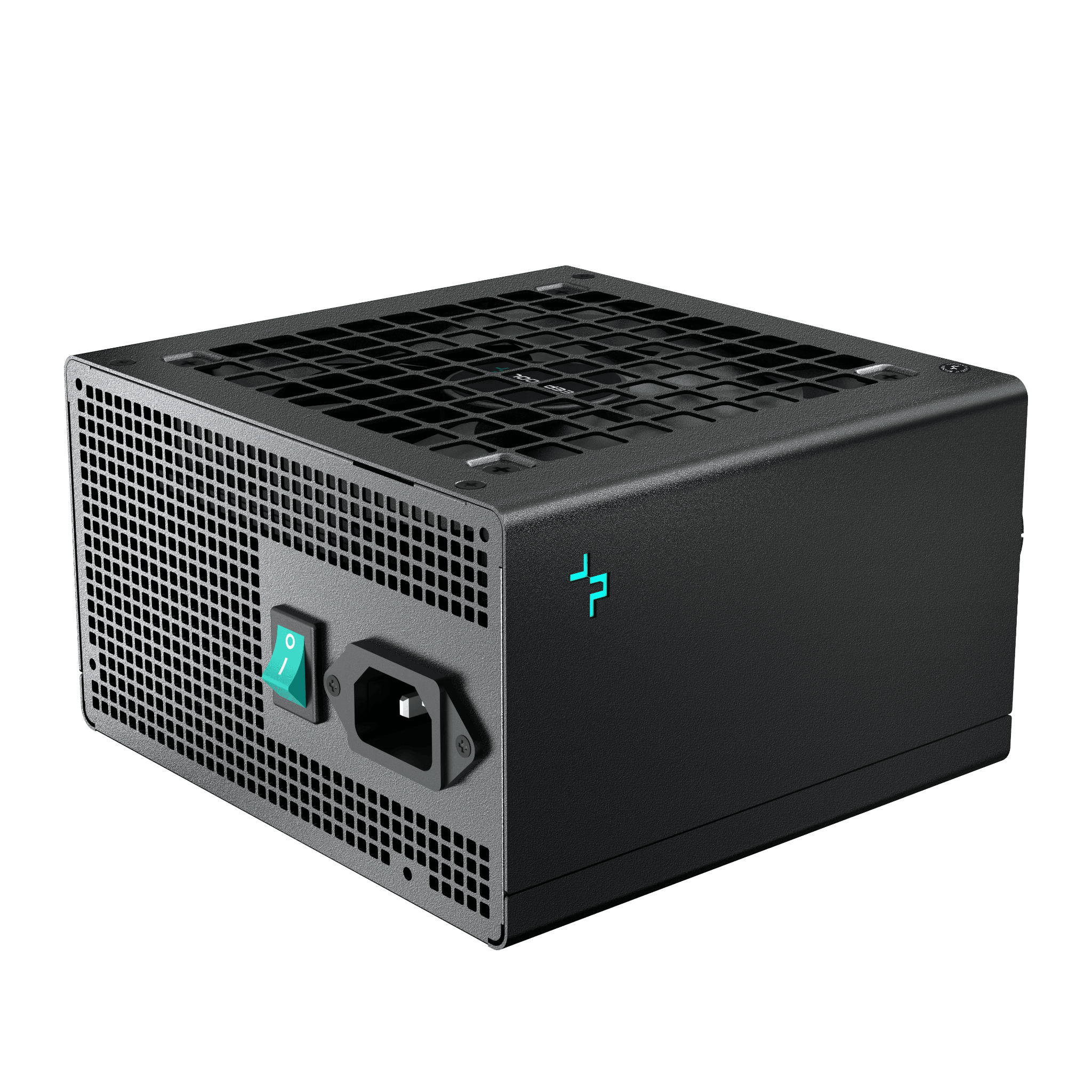

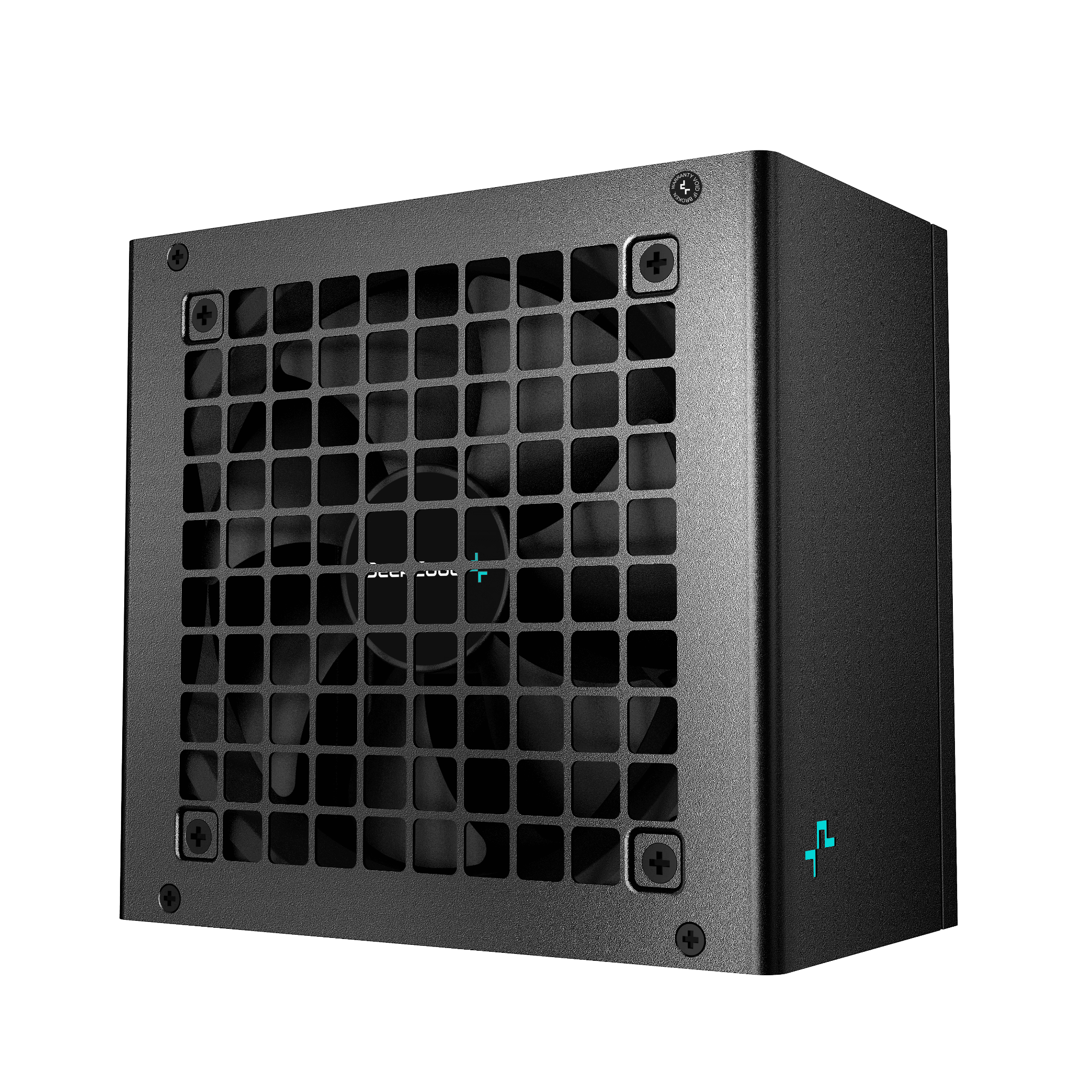

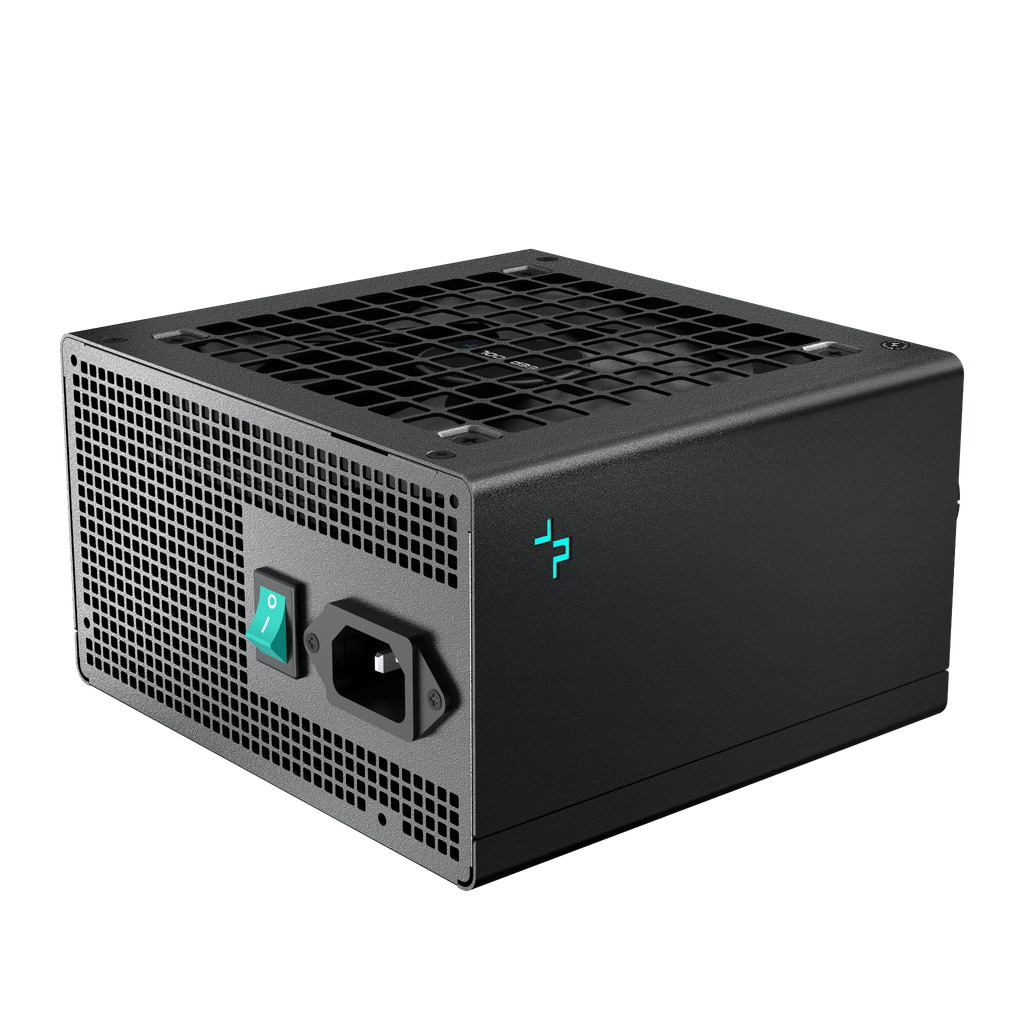

The DeepCool PK-D series power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.
BEAUTIFUL IN BRONZE
The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.
DC-DC CONVERSION
A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.
TOUGH AND DURABLE
Designed to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.
ERP LOT 6 COMPLIANT
Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.
STEALTH BLACK
Black direct power cables help blend in with other components.
Main Power Connector 24 (20+4)Pin x1
X1
EPS 12V Connector 8 (4+4)Pin x2
X1
PCI-E (6+2)Pin x2
X2
SATA x4
X2
4Pin Peripheral x4
X1

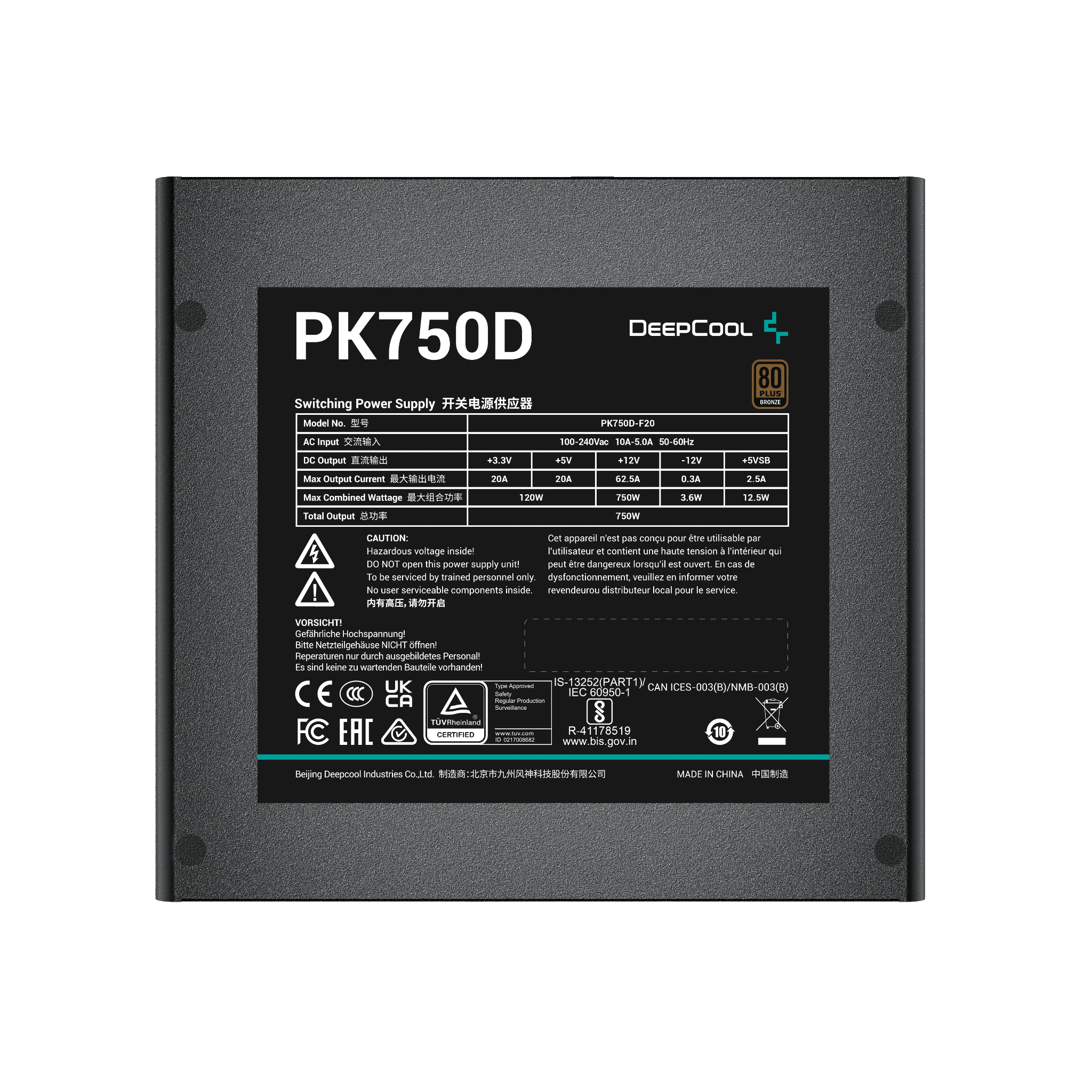

Technical Spec
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | Bronze |
| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC+DC to DC |
| Capacitors | Taiwan capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Protection | SCP,OPP,OTP,OVP,OCP,UVP |
| Operation Temperature | 0 - 40 °C |
| Regulatory | CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS/KC |
| Erp Regulation | ErP 2013 |
| MTBF | 100,000 Hours |
| EAN P/N | 6933412715351 R-PK750D-FA0B-CN 6933412715368 R-PK750D-FA0B-AU 6933412715375 R-PK750D-FA0B-EU 6933412715382 R-PK750D-FA0B-JP 6933412715399 R-PK750D-FA0B-UK 6933412715405 R-PK750D-FA0B-US 6933412715412 R-PK750D-FA0B-AR 6933412715429 R-PK750D-FA0B-BR 6933412715436 R-PK750D-FA0B-WO 6933412715443 R-PK750D-FA0B-BP |
