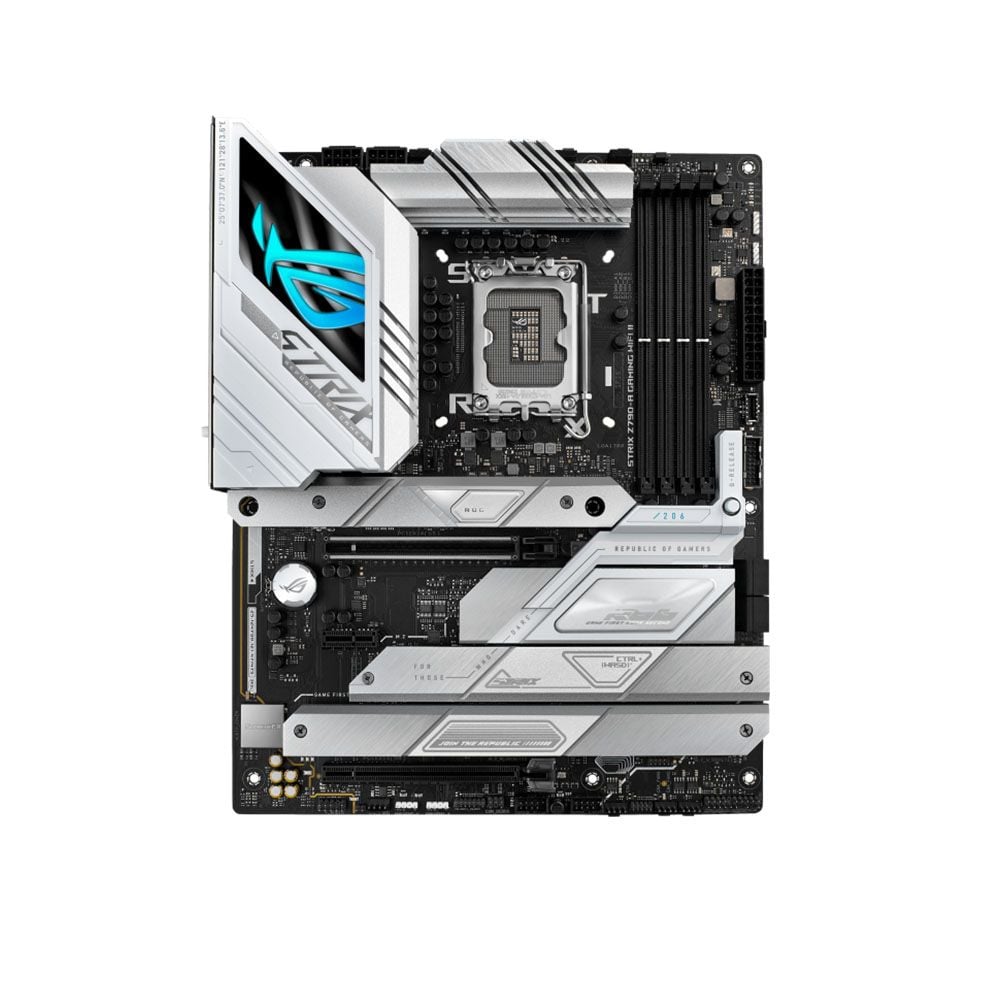

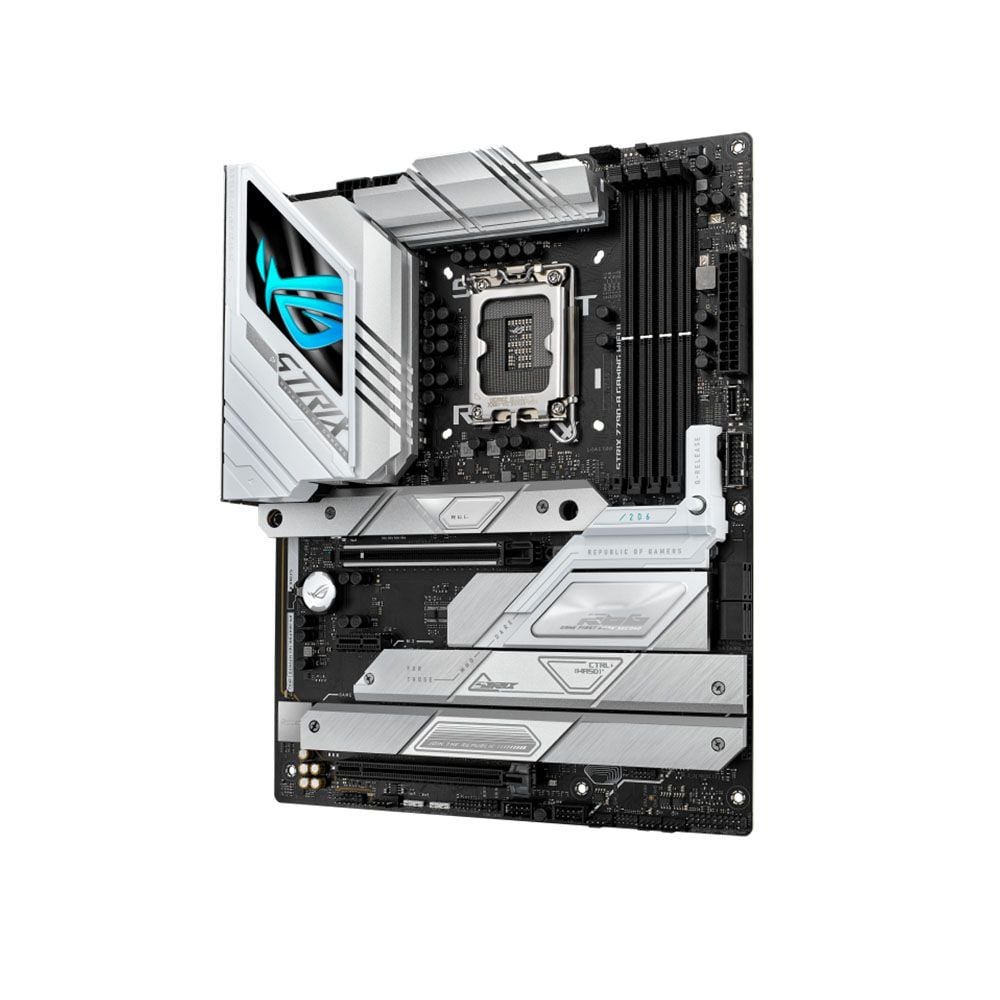

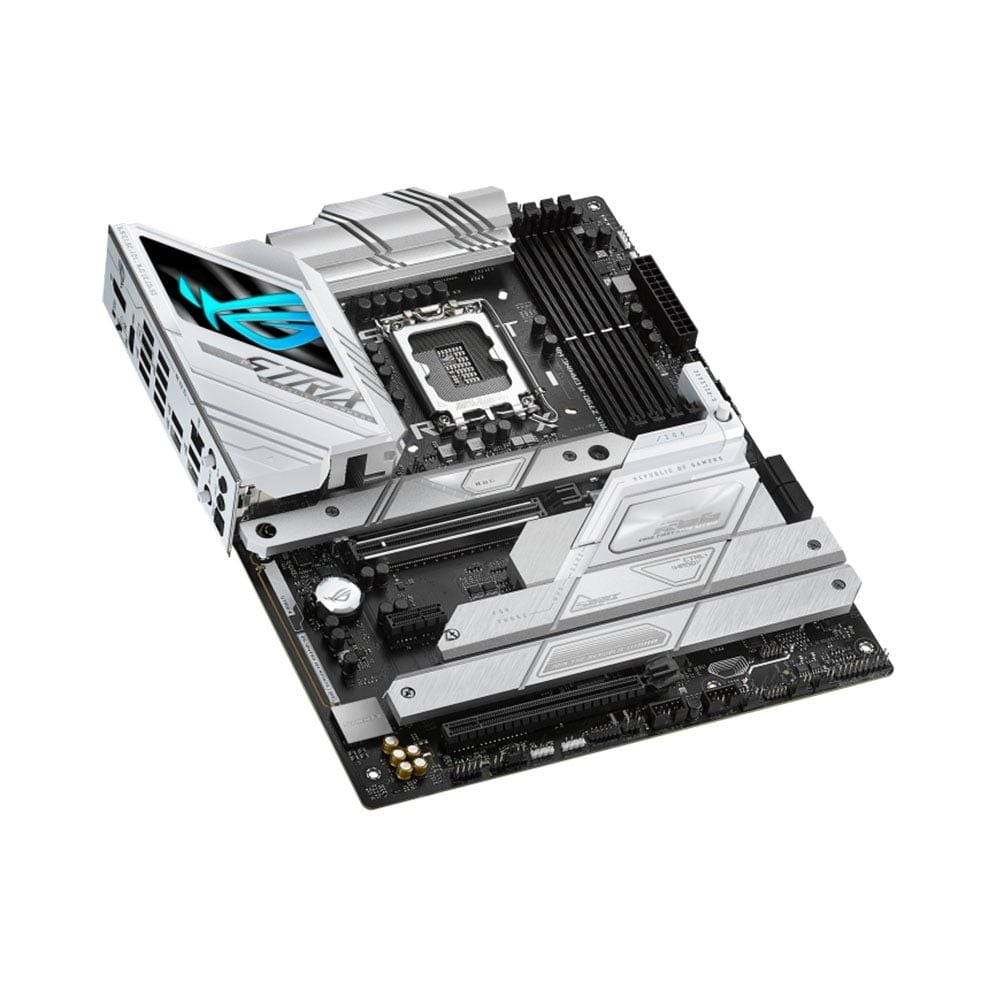

Mainboard ASUS ROG STRIX Z790-A GAMING WIFI II DDR5

Mainboard ASUS ROG STRIX Z790-A GAMING WIFI II DDR5

Thương hiệu: Asus

Loại sản phẩm: Mainboard

Nhóm sản phẩm: Mainboard Z790, Mainboard, Linh Kiện PC

10,699,000₫ ~~10,999,000₫~~ (-3%)

Bảo hành 36 tháng

Tiêu đề

Default Title

Thông số kỹ thuật

Đảm bảo đúng hẹn

Hoàn lại tiền trong 30 ngày

Miễn phí vận chuyển

Cho đơn hàng trong bán kính 5km

Hổ trợ trực tuyến

Chúng tôi hỗ trợ 24/24

Khuyến mãi

Khi build PC tặng kèm quà (Liên hệ)

Mô tả sản phẩm

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	ROG STRIX Z790-A GAMING WIFI II
CPU hỗ trợ	Intel
Chipset	Intel Z790 Chipset
RAM hỗ trợ	4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC) 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC) 5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture
Khe cắm mở rộng	Intel^® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0 x16 slot Intel^{^®} Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot
Ổ cứng hỗ trợ	Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel^{^®} Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel^{^®} Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Cổng kết nối (Internal	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin main power connector 2 x 8-pin +12V power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C^{^®} ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over voltage jumper 1 x Front panel audio header (F_AUDIO) 1 x 20-3 pin system panel header with Chassis intrude function 1 x Thermal sensor header 1 x Thunderbolt™ (USB4^{^®}) header

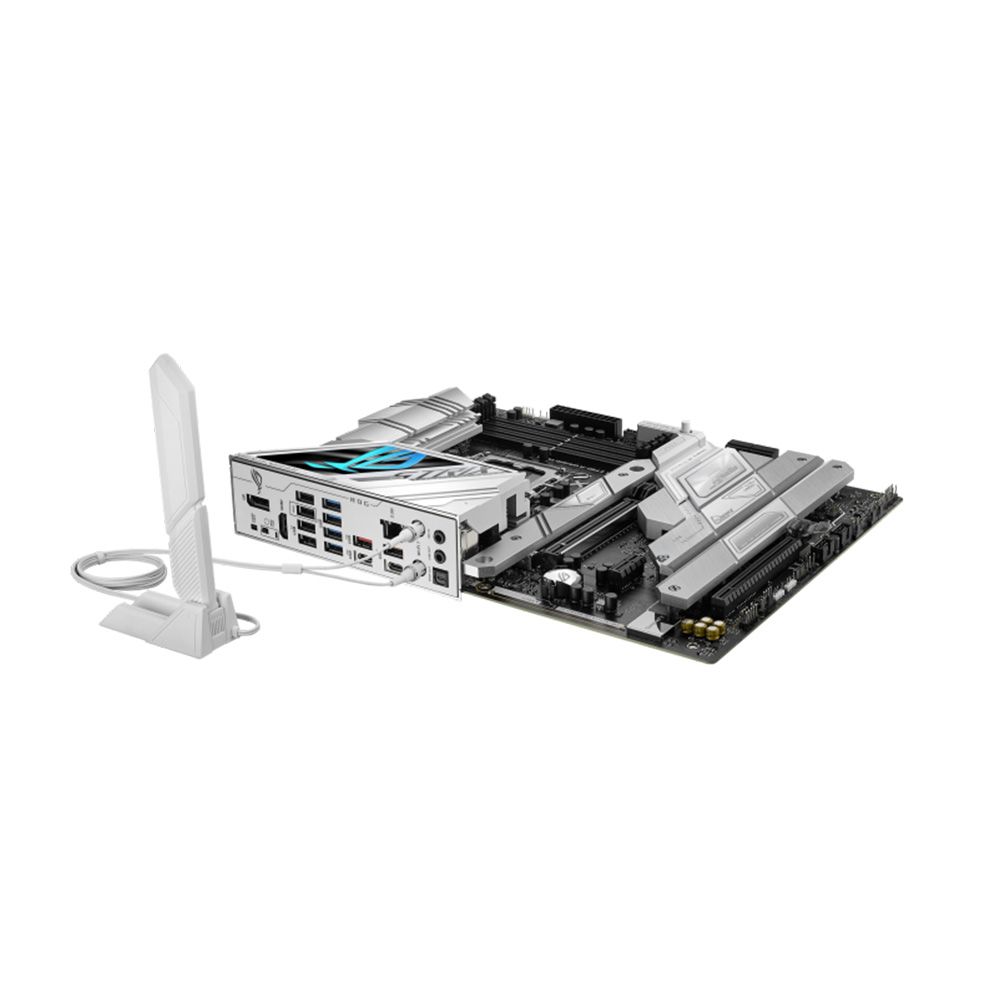

Cổng kết nối (Back Panel)	1 x USB 20Gbps port (1 x USB Type-C^{^®}) 3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C^{^®}) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel^{^®} 2.5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
LAN / Wireless	1 x Intel^{^®} 2.5Gb Ethernet ASUS LANGuard Intel^{^®} Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band* Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth^® v5.4****
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

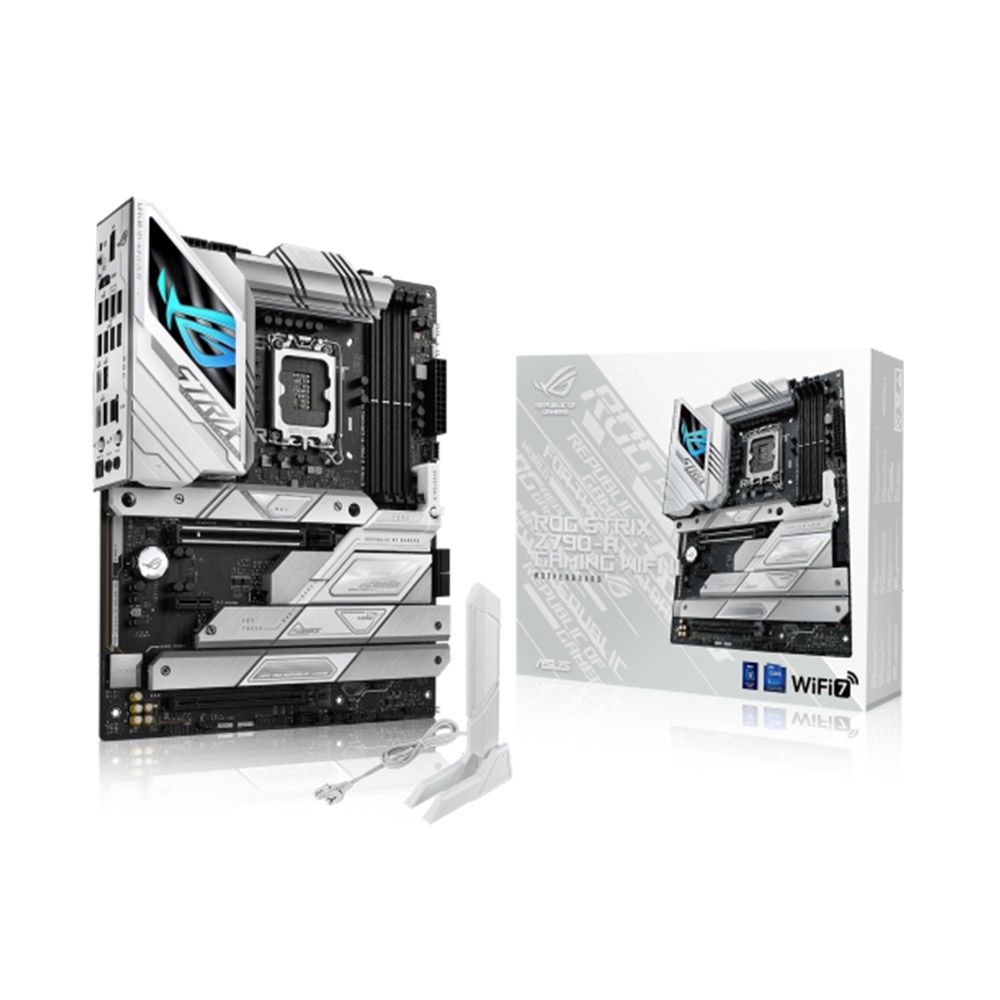

Phụ kiện	Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi Q-Antenna 1 x Cable ties package 1 x M.2 backplate Q-Latch package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 2 x M.2 rubber packages 1 x M.2 backplate Rubber package Documentation 1 x Quick start guide
