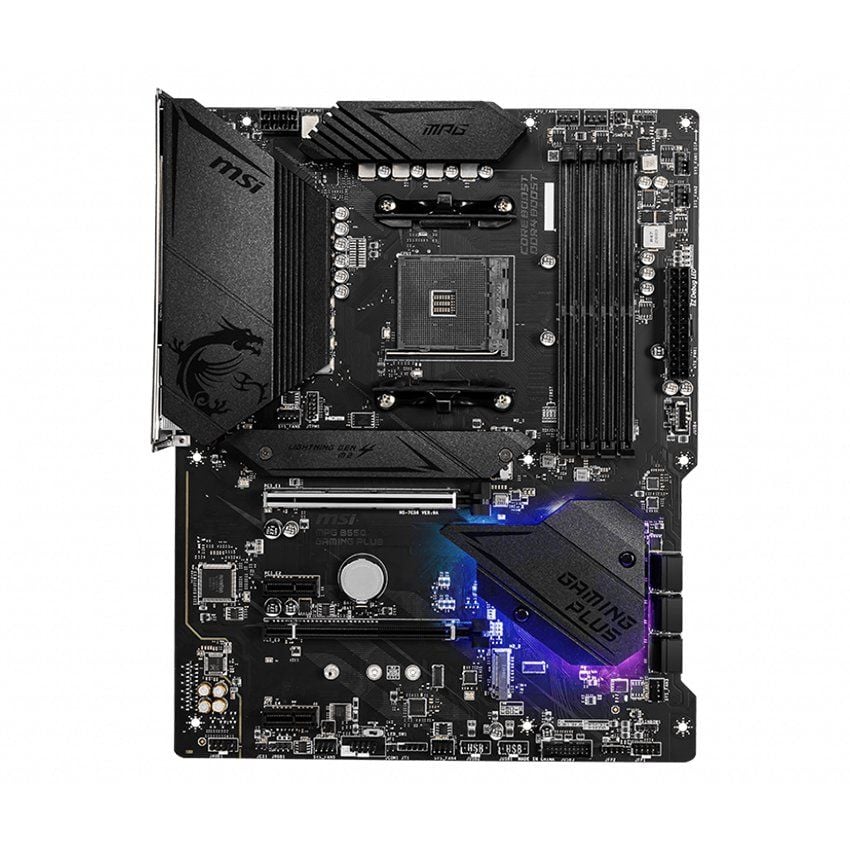

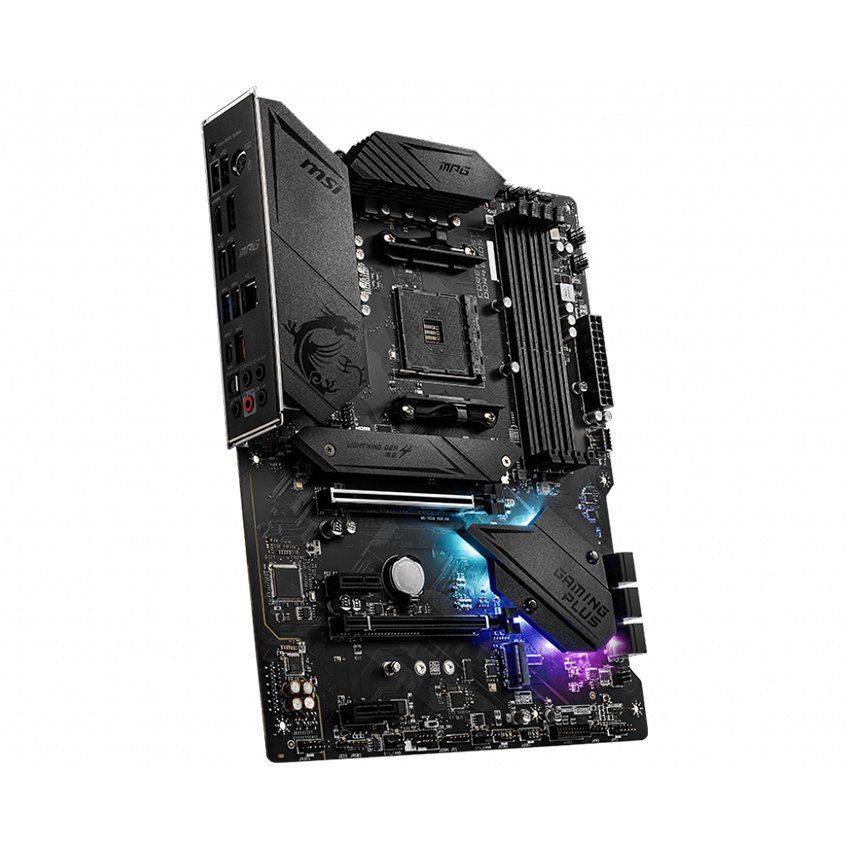

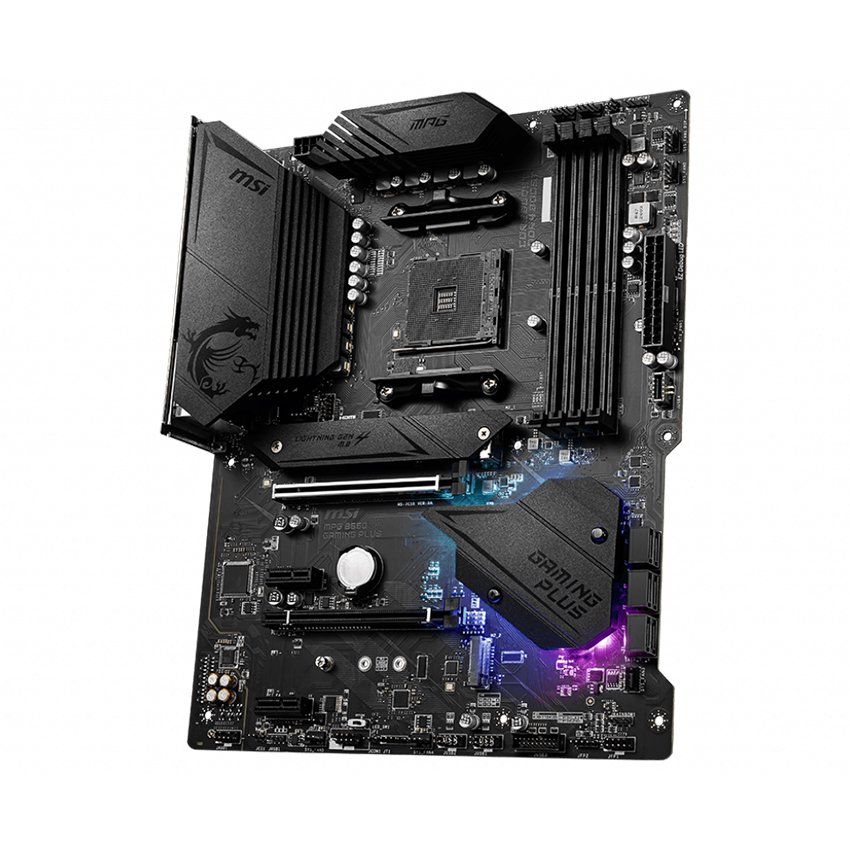

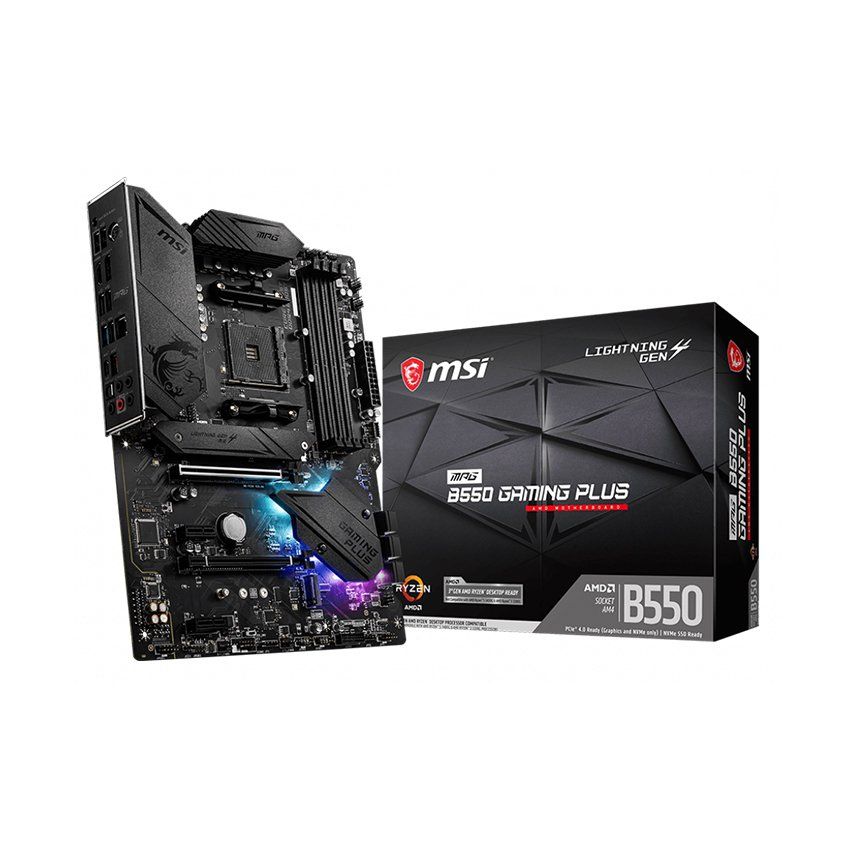

MAINBOARD MSI MPG B550 GAMING PLUS ( AM4 / ATX / 4XDDR4 )
Thông số kỹ thuật chi tiết Mainboard MSI MPG B550 GAMING PLUS (AMD B550 Socket AM4 ATX 4 khe RAM DDR4)
Sản phẩm |
Bo mạch chủ |
Tên Hãng |
MSI |
Model |
MSI MPG B550 GAMING PLUS |
CPU hỗ trợ |
AM4 socket 3rd Gen AMD Ryzen™ processors, và CPU AMD Ryzen™ tương lai bằng cách nâng cấp BIOS. |
Chipset |
AMD B550 Chipset |
RAM hỗ trợ |
4x DDR4 memory slots, hỗ trợ lên tới 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066 / 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
Cổng xuất hình onboard |

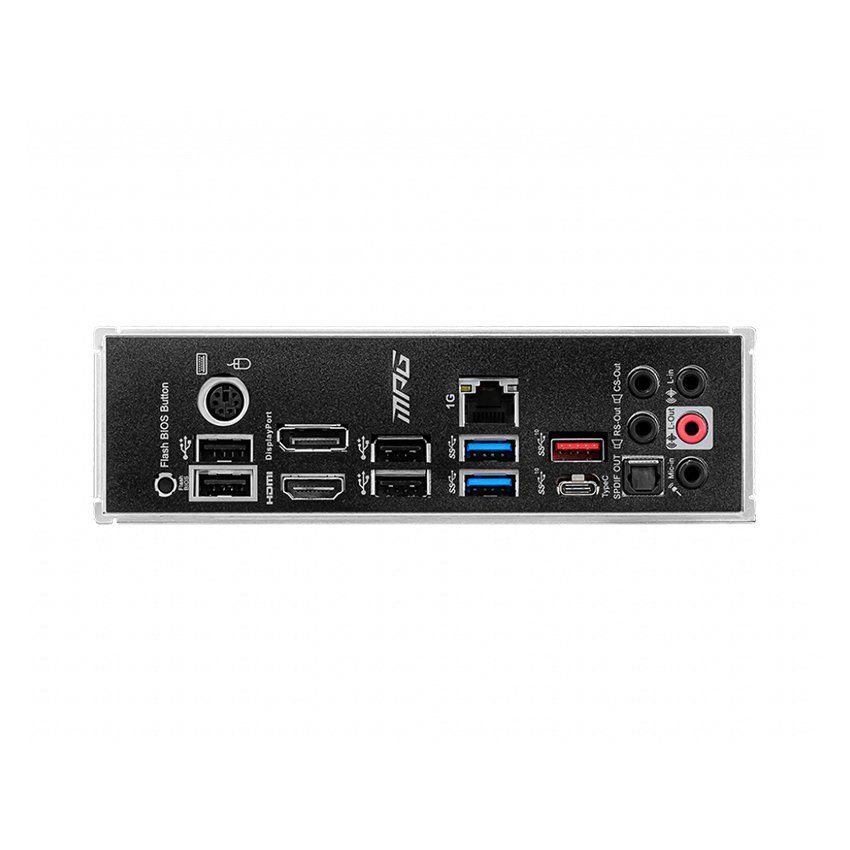

1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz |
Âm Thanh |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
LAN |
1x Realtek® 8111H Gigabit LAN controller |
Khe cắm mở rộng |
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots |
